Potassium Feldspar Raymond Grinding Mill

Scope of application: calcium carbonate crushing processing, gypsum powder processing, power plant desulfurization, non-metallic ore pulverizing, coal powder preparation, etc.

Processing materials: barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, activated clay, activated carbon, bentonite, etc.

Introduction of Potassium Feldspar Raymond Mill

Potassium feldspar, also commonly known as orthoclase, is a monoclinic mineral with generally red, yellow, and white colors.

Because of its low melting point and relatively stable chemical properties, potassium feldspar is widely used in the manufacture of glass, ceramics, abrasives and other materials.

The processing of potassium feldspar generally uses a potassium feldspar mill, and the fineness can be freely adjusted between 50-500 mesh.

The equipment has stable transmission and reliable operation. The entire potassium feldspar mill is a vertical structure, which occupies a relatively small area and is convenient for users to operate.

Structural composition of potassium feldspar mill

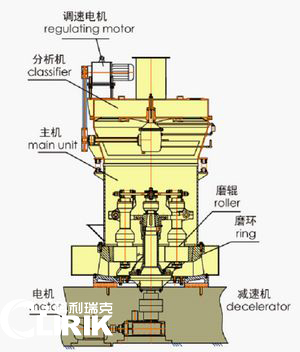

The structure of the potassium feldspar Raymond mill is simple, in which the main machine is mainly composed of a motor, an analyzer, a blower, a cyclone, a blade, a grinding roller, a grinding ring, a spring tie rod, a blade, a spring seat and so on.

Operation and maintenance are also very convenient, and auxiliary equipment such as crusher, hoist, storage bin, electromagnetic vibrating feeder and electrical control cabinet can also be equipped according to user needs.

Potassium feldspar Raymond mill outstanding advantages

1. Structural advantages
The internal structure is simple and the vertical structure is adopted, which reduces the floor space, and at the same time, the maintenance of the equipment is also much more convenient, and the downtime of the equipment during maintenance is reduced.

2. Quality advantage
It is processed with wear-resistant materials, so that the equipment has super wear-resistant and compressive properties, and the production process is supervised and guided by technical personnel, and the details are also handled in place, and there will be no quality defects.

3. Performance advantages
a. The performance of the complete set is strong. From the massive potassium feldspar to the grinding and packaging of the potassium feldspar, the equipment can form a self-contained system without the help of other equipment.

b. Noise reduction and dust removal device, so that the equipment does not have any dust and noise during the working process, which plays a role in protecting the environment.

c. The electrical system has strong centralized control ability and requires very little labor, which reduces labor intensity and expenditure to a certain extent.

d. The amount of potassium feldspar treated is relatively large, and the phenomenon of blockage will not occur during the treatment process, and the equipment can run smoothly all the time.

The working principle of potassium feldspar raymond mill

After the potassium feldspar Raymond mill material is crushed to the required particle size by the jaw crusher, the material is sent to the storage hopper by the elevator, and then sent to the grinding chamber of the main machine uniformly and continuously by the vibrating feeder.

Under the action of centrifugal force during rotation, the grinding roller swings outward and is pressed against the grinding ring. The shovel scoops up the material and sends it between the grinding roller and the grinding ring, and the purpose of grinding is achieved due to the rolling of the grinding roller.

The fine powder after grinding in the potassium feldspar mill will be brought into the analyzer for sorting along with the circulating air of the blower, the material with excessive fineness will fall back for regrinding, and the qualified fine powder will flow into the cyclone powder collection with the air flow. In the device, it is discharged through the powder discharge pipe, which is the finished product.
